An excellent alternative to a typical Dutch house. A ready-made house delivered entirely to the site. Mobile, suitable as a year-round or holiday home. No need for a building permit, available fully equipped or in a developer-finished state.
Version for 3 people: two bedrooms, a living room with a sofa bed, a kitchenette, and a bathroom.

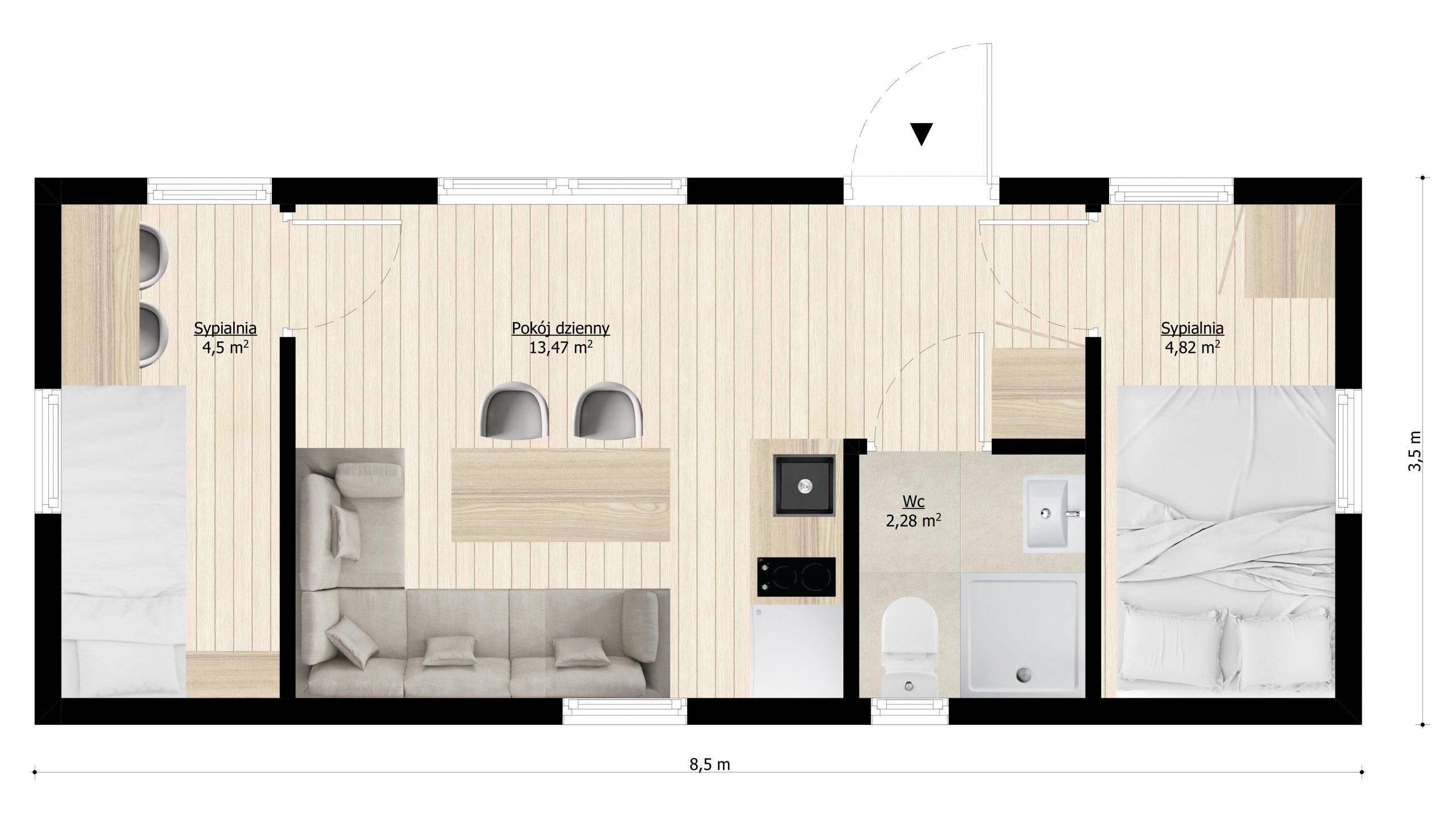

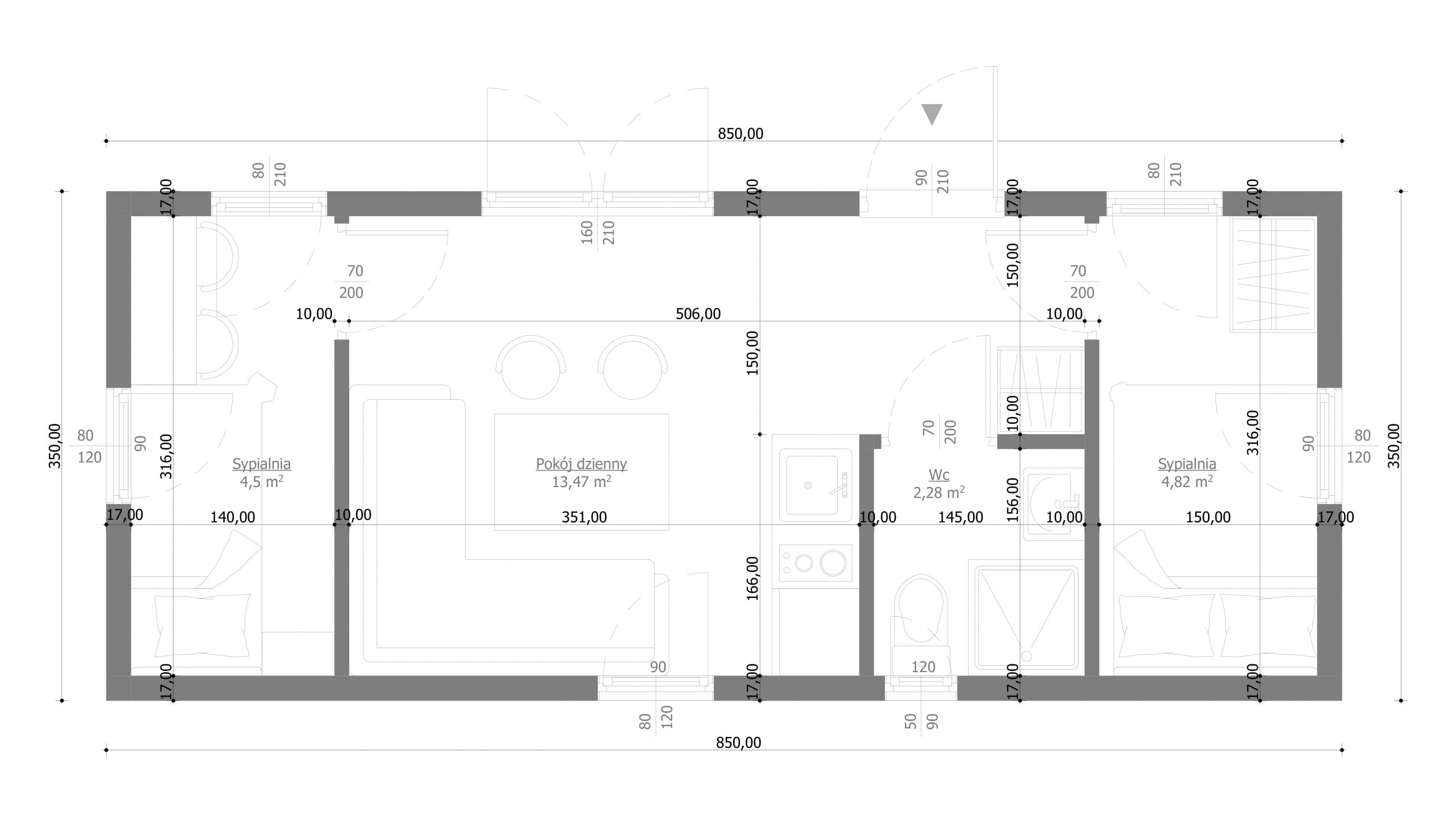

Total area 29.75 m²
Usable area 25.07 m²
Living room 13.47 m²
Bedroom 4.82 m²
Bedroom 4.50 m²
WC 2.28 m²
Stylish design, modern materials, and the possibility of customizing the project. At Szmaragd, durability is ensured by a steel-wood structure, while aesthetics are provided by the interior: modern vinyl cladding and wood, and the exterior: Scandinavian spruce and anthracite standing seam metal.
A year-round house delivered to the site ready for use.
Version for 3 people: two bedrooms, a living room with a sofa bed, a kitchenette, and a bathroom.
Usually does not require a building permit.
Also available in an economical – summer version.
Turnkey or developer-finished options available.
Durable and rigid steel-wood construction.
Exterior materials – Scandinavian spruce and anthracite sheet metal with standing seams.
Interior materials – modern vinyl cladding and wood.
Placed on site using a wheeled system or a crane.
Optional: terrace, covered pergola.
Load-bearing structure
Steel with wooden elements. The building has two axes of removable wheels (in the mobile version).RoofSingle-pitched, finished with steel roof tiles or standing seam metal sheets. Eaves, gutters, and downspouts (visible or hidden). Layers are listed from bottom to top – ceiling finishing cladding, OSB boards, roof trusses, PUR foam insulation, vapor-permeable membrane, ventilated air gap, auxiliary framework, roofing.
Ceiling
Ceiling height 2.25 m – 2.50 m (standard living room height is increased). Finished with MDF boards or vinyl panels.
External walls
Multilayer – MDF panels or wood, OSB board, open steel profiles, PUR foam insulation, vapor-permeable membrane, ventilated air gap, auxiliary framework, wooden facade cladding.
Internal walls (partition walls)On a structure made of wooden profiles and OSB boards, acoustic insulationwith mineral wool. Finishing with vinyl panels, MDF boardsor wood (optional)
Floor
Layers listed in order from the bottom – galvanized sheet metal, steel profiles, PUR foam insulation, OSB boards, AC4 laminated panels or other flooring material (optional).
Windows
Frames made of PVC, 5-chamber, with one-sided coloring in the chosen color, ventilation function in selected windows, balcony windows with movable posts.
Doors
Exterior – steel, insulated, in color. Interior – MDF, finished with veneer
Plumbing installation
PEX-AL-PEX pipes, electrically heated (in the year-round version of the house), PVC sewage pipes
Heating
Installation ready for electric radiators or infrared (IR) panels (optional)
Electrical installation
230 V or 400 V (optional) – distribution box, wires in conduits 3 x 1.5 mm and 3 x 2.5 mm, light switches, indoor and outdoor sockets
Lighting
Indoor – ceiling LED, outdoor – wall sconces or LED strips.
Living room and bedroom
Fully prepared for furnishing and radiator installation,
walls and floors finished, interior doors installed.
Kitchen
Prepared for the installation of kitchen appliances and furniture fittings
Bathroom
Floor and wall finishes – waterproof vinyl panels.The room is prepared for the installation of fixtures, optionally – a version with full installation (sink, toilet, shower cabin, washing machine, water heater (flow-through/boiler), bathroom cabinets)
